ARX MSX 48
16 in, 48 Out ISO-Transformer Microphone / Line Splitter
Our Part No. 10312
Manufacturers Part No. MSX 48
Product end of line
Please note this product is EOL (End of Life) and no longer available from the manufacturer. We may still have stock or can recommend an alternative. Please contact us to discuss!
Product end of line
Description
The ARX MSX48 Transformer isolated Microphone/Line Splitter has been developed to deliver the performance required by the increasing complexity of today’s standards of audio production.
The MSX 48 is a totally passive device requiring no power, and consists of Sixteen channels of transformer isolated ultra low noise Microphone/Line Splitter. Each of these channels has a direct looped Main/FOH feed, and a transformer isolated Monitor split on the front panel.

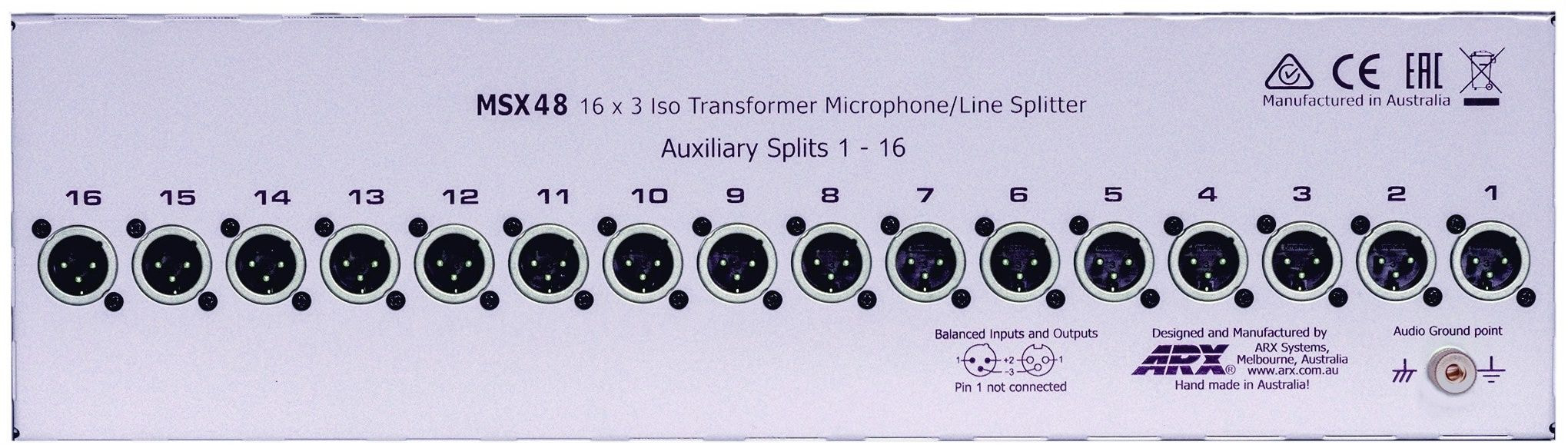

On the rear panel is an Auxiliary transformer isolated split ideal for use with a remote recording truck or TV feed.
The all-steel chassis of the MSX 48 provides strong interference resistant shielding. Internally, state-of-the-art transformers deliver superb audio quality and total galvanic isolation.
The MXS 48 is the user-friendly and straightforward answer to multi channel signal splitting requirements.
Key features
- Sixteen channel / three way split per channel
- Passive unit - no power required
- Ultra low noise design
- Transformer Balanced Inputs and Outputs
- Inputs and Main Outputs hard wired to pass Phantom Power
- Intuitive, 'user friendly' layout
- Flawless audio performance
