K-Array Kommander-KA14 i

4ch switching mode Class D Amplifier with DSP, 4x600W@2Ω

Our Part No. 17489

Manufacturers Part No. Kommander-KA14 i

Description

The Kommander-KA14I is a fully-featured, 4x600W@2Ω amplifier platform with DSP highly integrated into the K-array collection ecosystem. The Kommander-KA14I offers pristine sound and complete control over the connected loudspeakers, either as a stand-alone driving unit and in conjunction with other K-array amplifiers in complex and demanding applications. The dedicated K-array Connect mobile app provides a user-friendly interface for remote control of the DSP main parameters and easy configuration of the signal routing. K-framework3 is the managing and control software dedicated to professionals and operators looking for a powerful tool for loudspeakers system design and tuning of large a number of units over a wired LAN.

List price *

£3,298.00

Key features

  1. Output Power: 4 x 600W @ 2Ω
  2. Impedance: minimum 2 Ω
  3. Frequency Response: 20 Hz - 20 kHz (±1 dB)

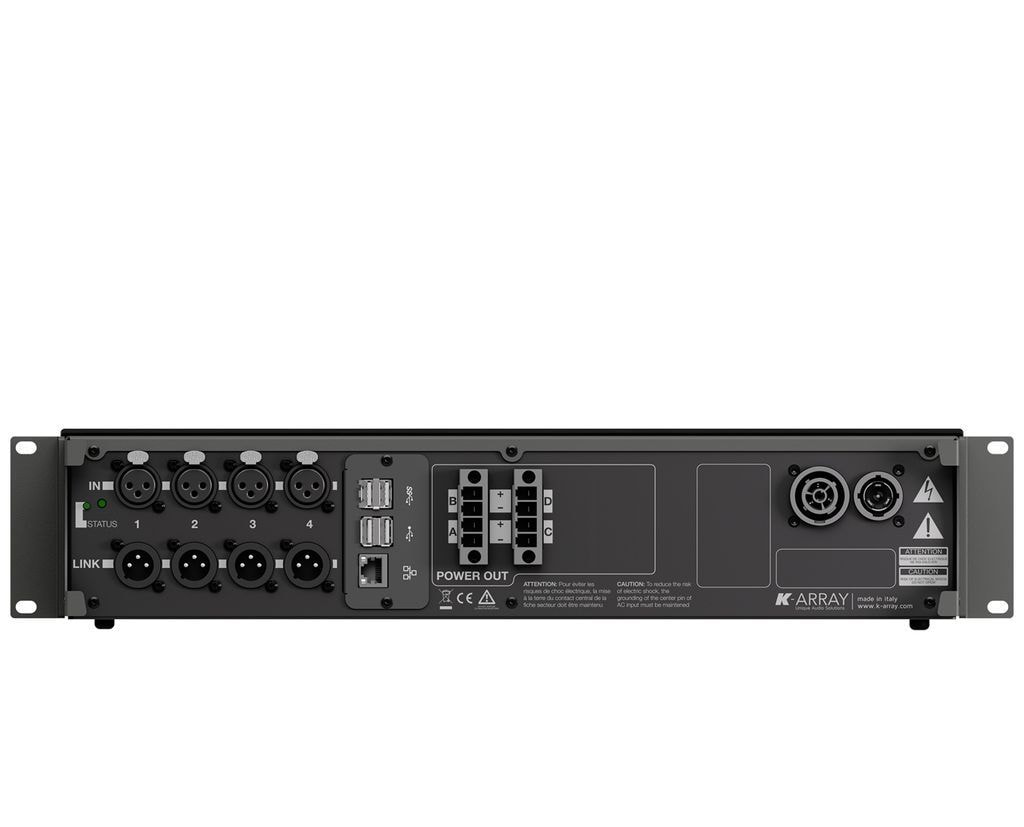

  4. Connections: Input: 4x XLR-F bal input, 4x XLR-M bal LINK output; Output: 2x PC 4/ 4-ST-7,62 speaker output; Remote connectivity: 1x Ethernet RJ45, 4x USB-A, Wi-Fi IEEE 802.11 b/g/n; Power: 1 x PowerCon TRUE IN, 1 x PowerCon TRUE Link
  5. Built-in DSP: Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
  6. Remote Control: Wi-Fi and Ethernet dedicated APP and Desktop software
  7. Protections: Thermal protection, output short circuit, RMS output current protection, high frequency protection, power limiter, clip limiter.
  8. MAIN Operating Range: 100-240V AC, 50-60 Hz with PFC
  9. Power Consumption: 400 W @ 4 Ω load, Pink noise, 1/8 rated power
  10. Material: Stainless Steel
  11. Dimensions (W x H x D): 430 x 87 x 430 mm (17 x 3,4 x 17 in)
  12. Weight: 6 kg (13,2 lb)
