Cloud MA80FT
80W Mini Amplifier
Our Part No. 15053
Manufacturers Part No. MA80FT
Description

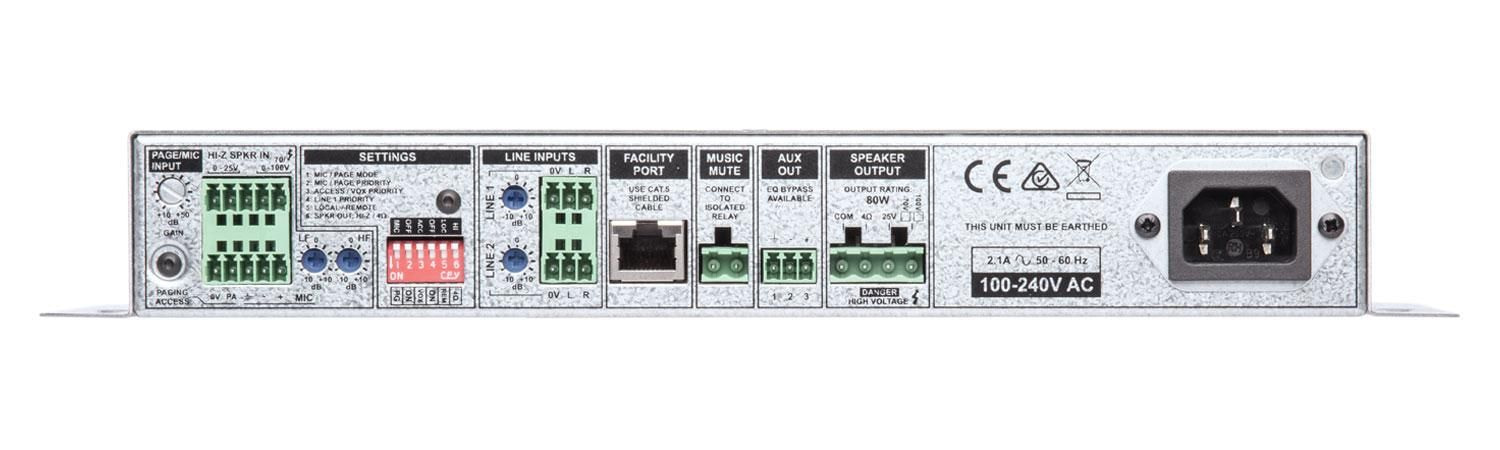

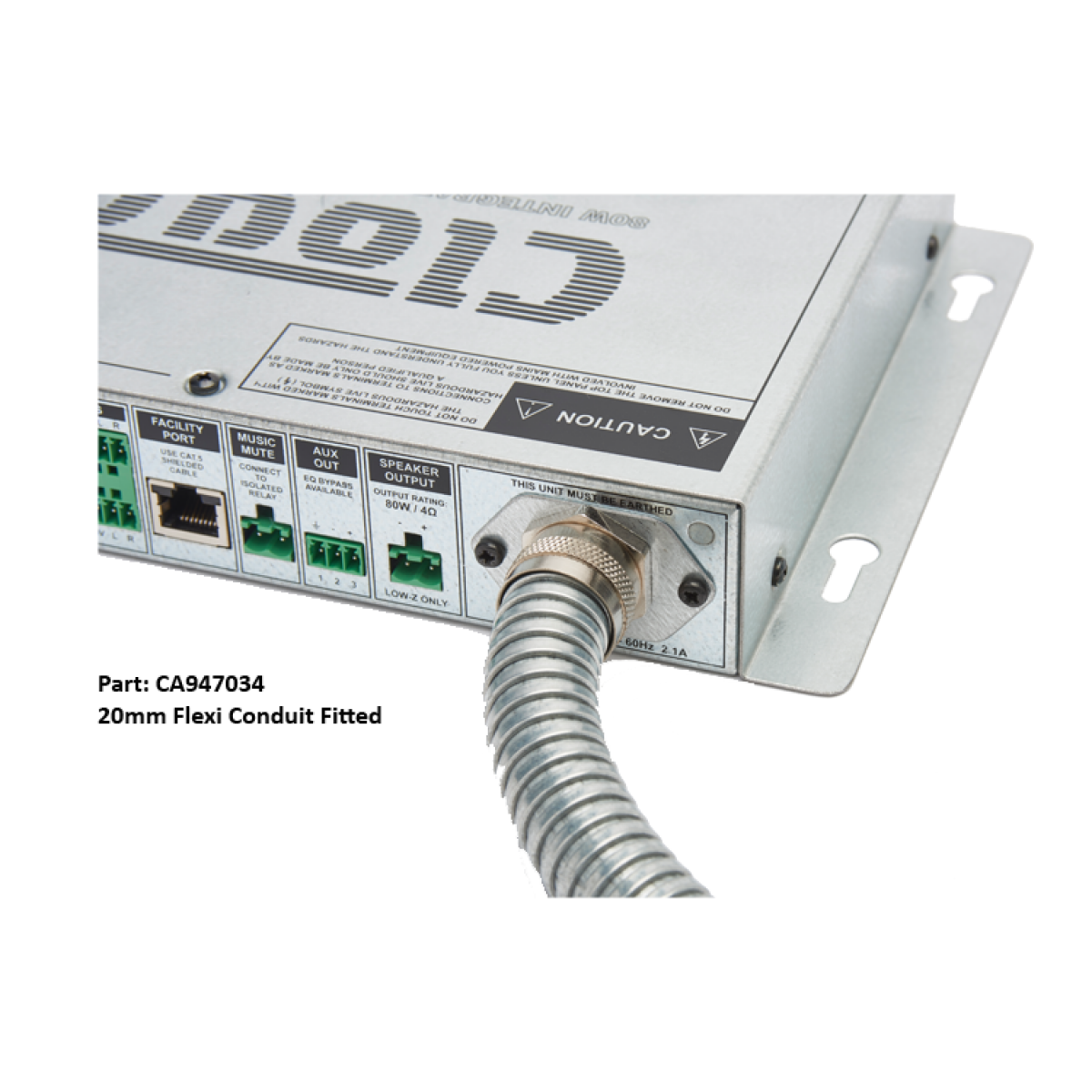

The MA80FT is a Mini Amplifier providing 80W Mono Output at either 4Ω (low impedance) or 70/100v line which is switchable via rear Dip switches. It is fitted with a paging Microphone input with access contacts, a useful 70/100v line input a further two line inputs and Facility Port input allowing connection of the LM-2 Input Module Wall Plates and the BT-1F Bluetooth Audio Wireless Input Module. Designed for integration into commercial audio installations and AV systems where de-centralisation of the system component is an advantage. It is intended as an "install and forget" component and is small enough to be fitted into a wall or ceiling void, or directly adjacent to a projector, flat screen or loudspeaker. The MA80 is powered internally via 100-240V SMPS. There is an optional 20mm Flexible Conduit Kit available (Warepart: CA947034) for fire protection.
List price *
£510.00
Key features
- 1 x 80W Output
- High Impedance Line Output 100/70/25V
- Low Impedance Line Output 4Ohm Min Load
- APD - Auto Wake & Hibernation
- Mic Input with EQ and Input Gain
- Music EQ Plus Optional EQ Card
- Paging Mic Access Contacts (SW/VOX)
- Facility Port Input
- Aux Output
- Dynamic Clip, Thermal & Short Protection
- Integrated Universal Power Supply
