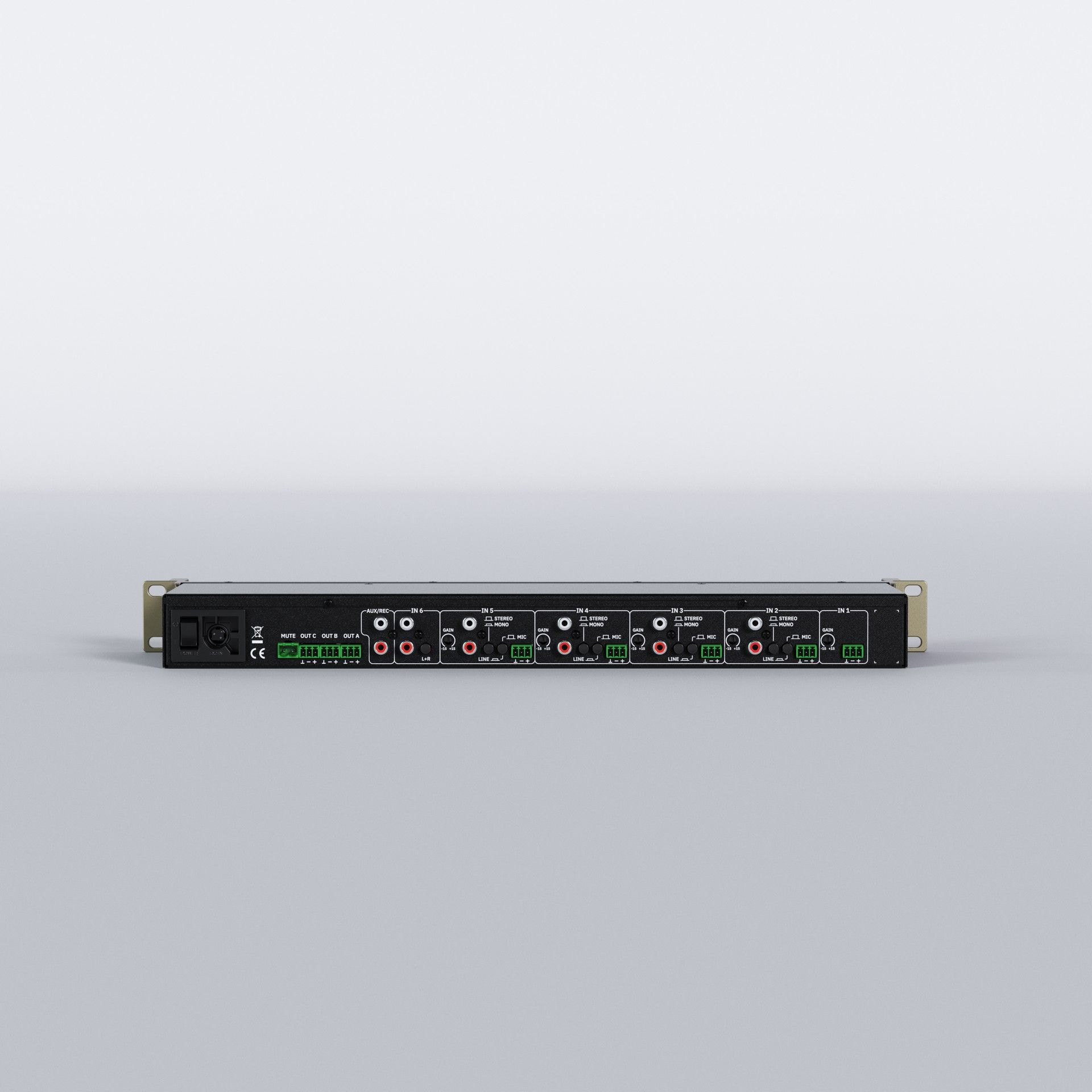

Ecler SAMI-603

Analogue Stereo Mixer | 6x3 | 1U Rack

Our Part No. 19776

Manufacturers Part No. CSAMI603

Description

SAMI-603 is an installation audio mixer in standard rack format, featuring 1 MIC input + 4 MIC/LINE Stereo inputs + 1 LINE Stereo input and 3 outputs that can be configured as 1 stereo couple + 1 mono or 3 independent mono. Each output can get a dedicated mix from the available inputs and has a 3-band tone control. Talkover (priority) function is assignable to each input from IN1 to IN5 over the mix output buses. ST/MONO mix switch for the A/B outputs and MUTE port for external dry contact triggering.

View spec sheet

List price *

£453.90

Key features

  1. 6 input channels, 2 main outputs 19” installation mixer
  2. Micro sensitivity level can be adjusted on the back panel
  3. +18V Phantom Power available in all “MIC” inputs
  4. Direct micro input on front panel, channel 1
  5. Includes a talkover assigned to “INPUT 1” with internal release time adjustment
  6. Three-band tone controls for each channel, accessible with a screwdriver
  7. Vu-meter for the mix signal
  8. Two internally adjustable output levels
  9. Recording output
  10. Direct access to the mixing bus allowing you to connect another mixer and increase the number of inputs
  11. MUTE remote control input enabled by external dry contact closure for connecting fire detection systems and other safety devices.
  12. Mono/stereo switch

Tech Specs

  1. Number of input ports : 6, MIC/LINE ( 1 STEREO direct MIC input on front panel) 1, MIX LINE
  2. Number of output ports : 1 main mix output 1 AUX/REC output
  3. Power supply ±17.5VDC External PSU
  4. Shipping dimensions 560 x 60 x 295 mm / 22.05 x 2.36 x 11.61 in (WxHxD)
  5. Frequency response LINE: 10Hz-50kHz -1dB MIC BAL: 10Hz-30kHz -1dB
