Yamaha DM5 Compact
Compact Digital Mixing Console
Our Part No. 22686
Manufacturers Part No. VJA3680
Description

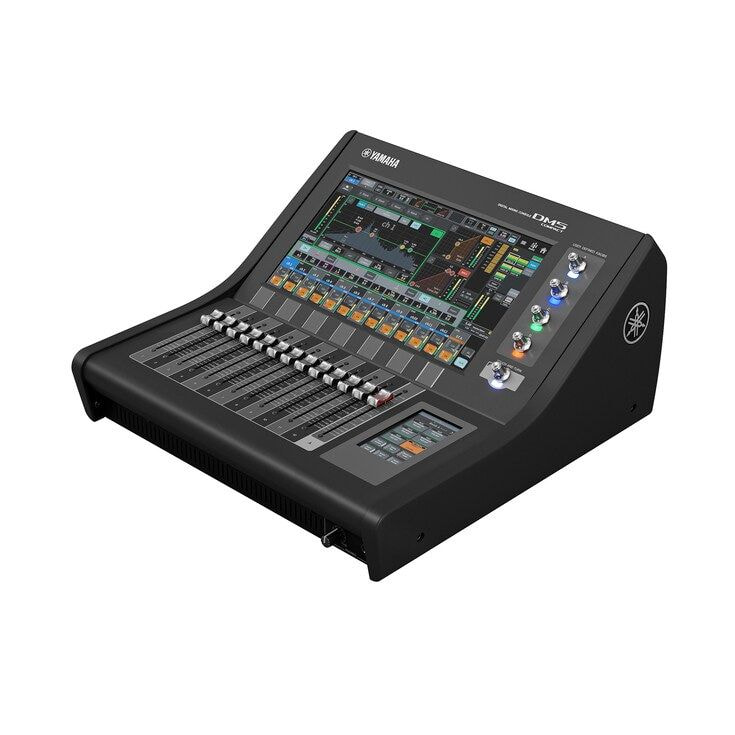

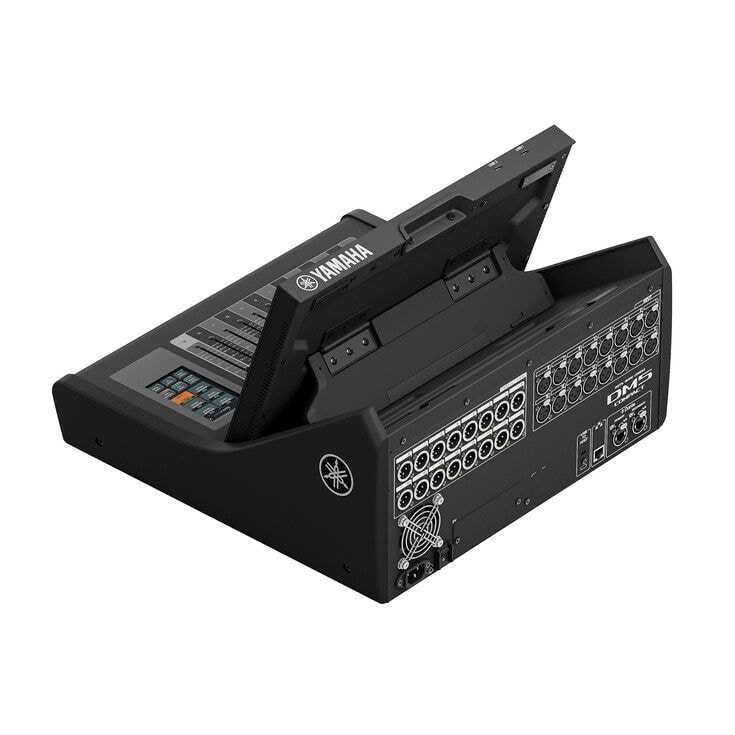

The Yamaha DM5 Compact delivers the DM5 operating concept in a smaller single-bay format for professional live sound, corporate, house of worship, theatre and broadcast applications. It provides 48 mono input mixing channels, 24 Mix buses, 12 Matrix buses and 64 x 64 Dante networking, with 16 local analogue inputs and 16 analogue outputs. The surface combines 13 motorised faders with a 13.3-inch multi-touch display featuring Yamaha's glass-key interface and a 4.3-inch user-defined touchscreen. A PY expansion slot and 18 x 18 USB audio interface give the console room to grow with the wider Yamaha ecosystem.
List price *
£5,984.00
Key features
- 48 mono input mixing channels
- 24 Mix buses, 12 Matrix buses and 2 Stereo buses
- 13 motorised faders in a compact single-bay surface
- 13.3-inch multi-touch main display with dynamic glass keys
- 4.3-inch user-defined touchscreen for custom controls
- 16 analogue inputs and 16 analogue outputs
- 64 x 64 Dante networking at up to 96 kHz
- 18 x 18 USB audio interface
- PY card slot for additional processing or I/O
- 16-slot onboard effects rack with 43 effect types
- Bluetooth audio playback and RJ45 mixer control
- Compatible with DM Editor, DM StageMix, MonitorMix and ProVisionaire workflows
