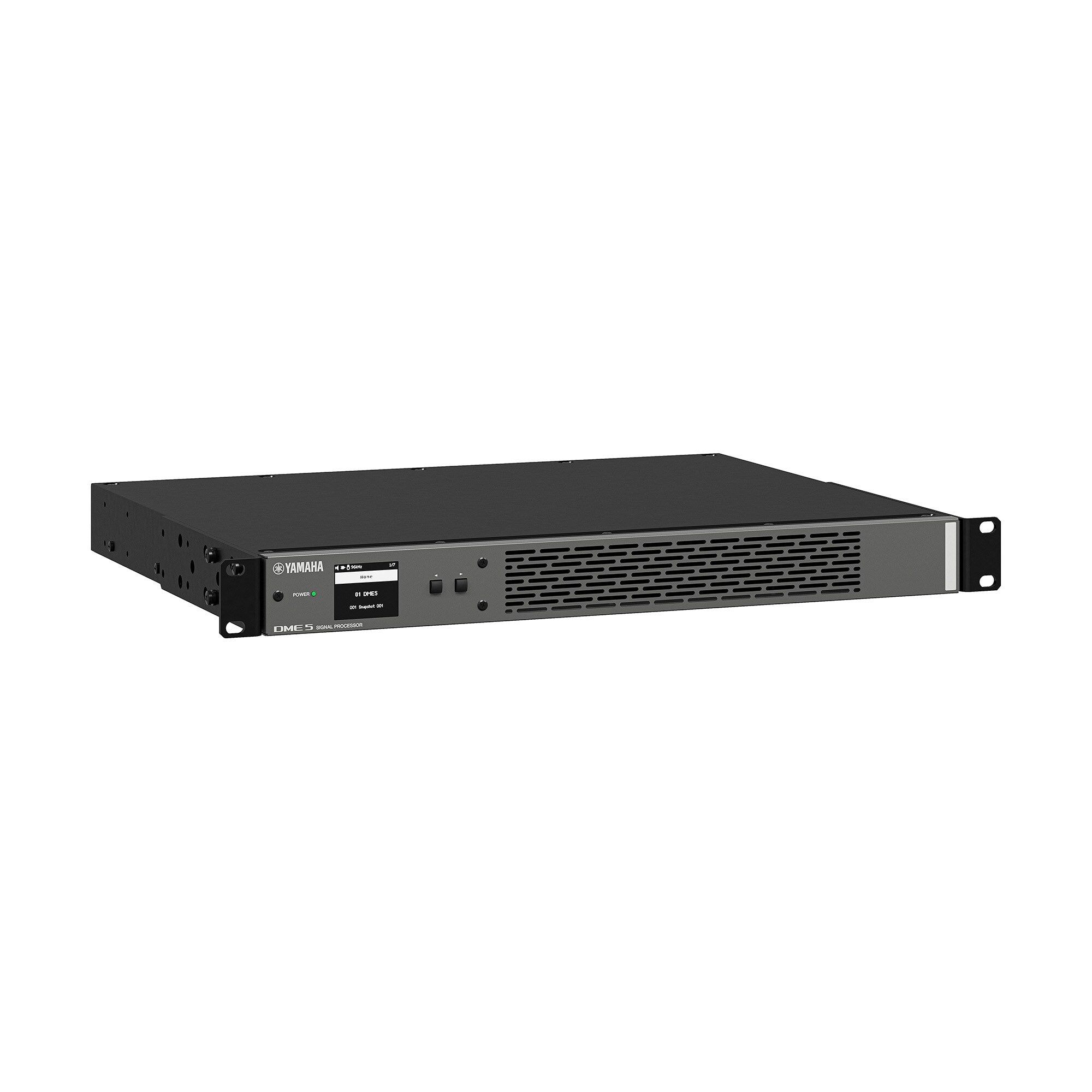

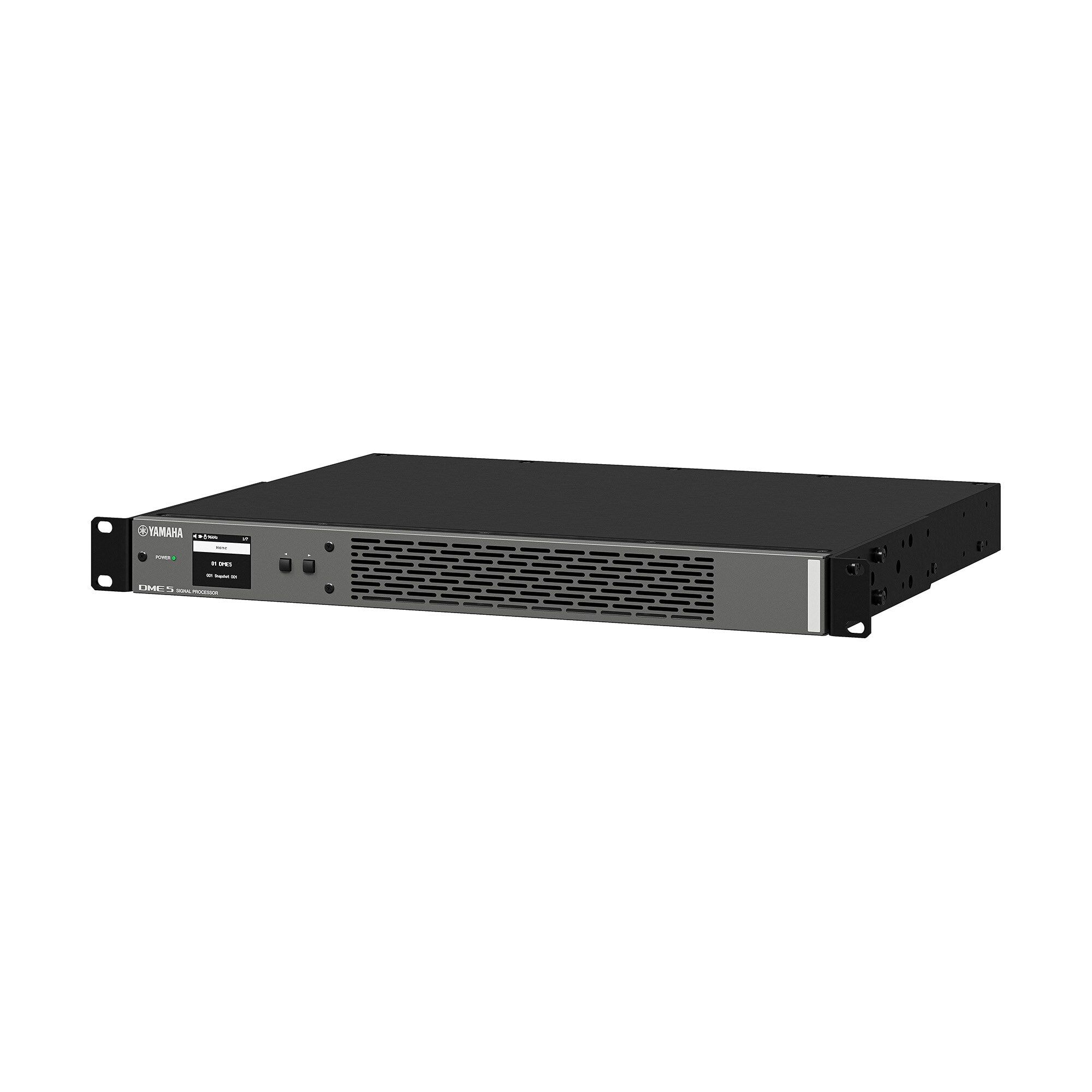

Yamaha DME5
Digital Signal Processor
Our Part No. 21064
Manufacturers Part No. VJA3980
Description
The Yamaha DME5 is a powerful open-architecture digital signal processor designed for commercial audio and installed sound systems. It combines 96 kHz signal processing with extensive analogue, Dante and USB connectivity, providing a flexible platform for systems ranging from corporate and education environments to hospitality, retail and larger installed audio applications.
Integration with Yamaha ProVisionaire Design and the Conductor function enables centralised configuration and control of compatible Yamaha devices, while four flexible analogue I/O channels can be configured as inputs or outputs to suit each installation.
List price *
£3,746.00
Key features
- 96 kHz open-architecture signal processing

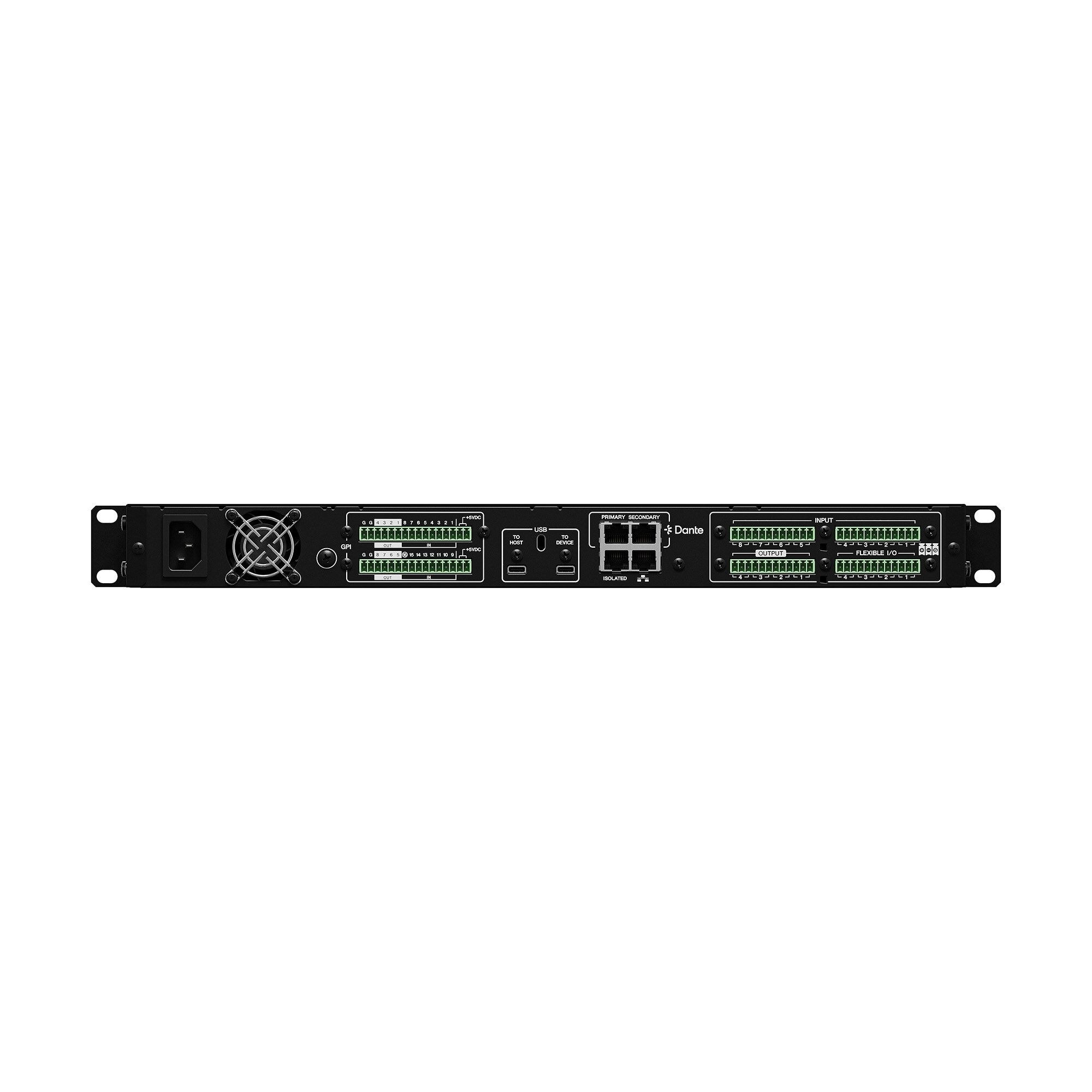

- 8 analogue inputs / 4 analogue outputs
- 4 channels of configurable FLEXIBLE I/O
- 64 x 64 Dante audio channels
- 2 x 2 USB audio interface via USB-C
- 16 GPI inputs / 8 GPI outputs
- Yamaha ProVisionaire Design support
- Conductor function for integrated Yamaha system control
- Built-in LCD display
- Integrated ProVisionaire Kiosk web server
- USB device playback for WAV and MP3 files
- Compact 1U rackmount design
