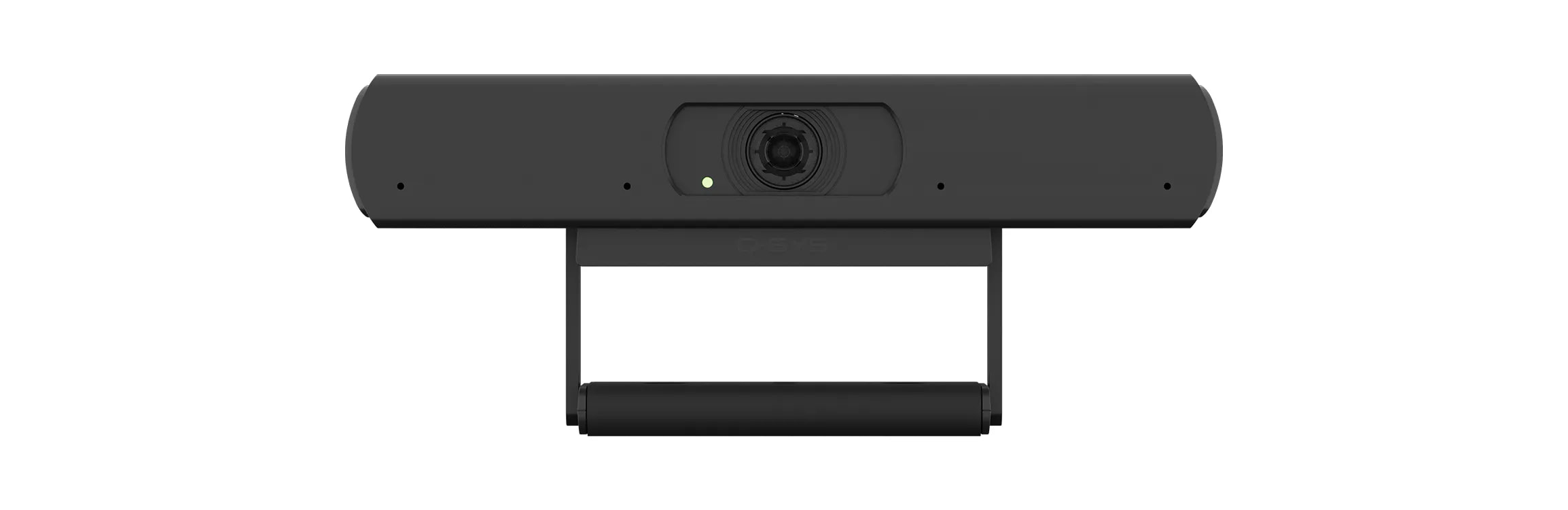

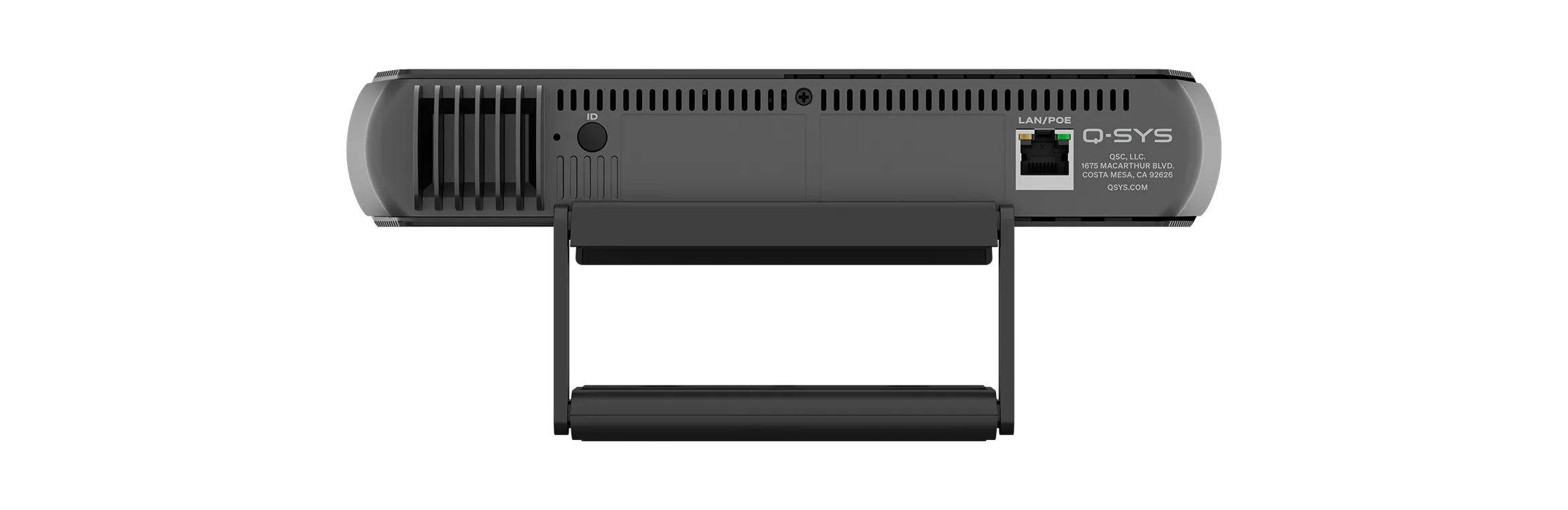

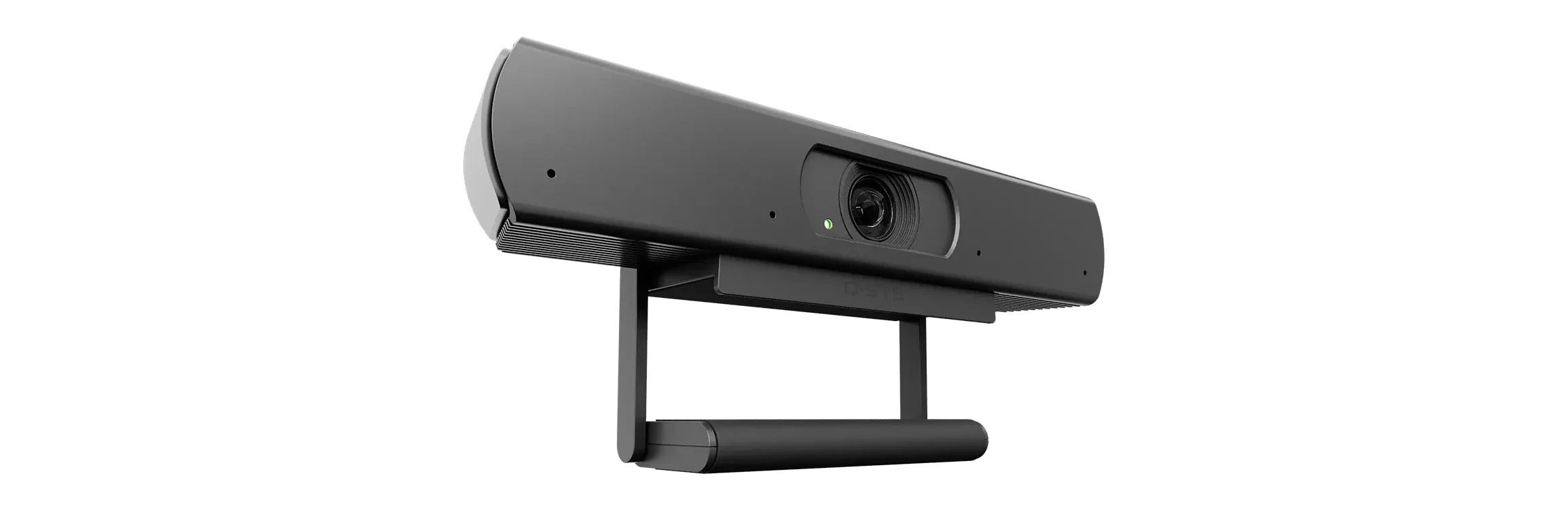

Q-SYS NC-90-G2

Network ePTZ camera

Our Part No. 20705

Manufacturers Part No. NC-90-G2-BK

Description

Q-SYS NC Series network cameras deliver high-quality video feeds natively to Q-SYS. The NC-90-G2 is the next-gen network ePTZ camera that combines onboard AI with enhanced optics to deliver an automated collaboration experience in smaller, wider collaboration spaces. Driven by the Q-SYS Full Stack AV Platform, the NC Series cameras integrate seamlessly into any Q-SYS system, allowing for easy camera feed routing anywhere on the network without the need for complicated programming or video matrix hardware. These camera video feeds are delivered to any modern video conferencing applications via any Q-SYS AV bridging peripheral.

Next-gen ePTZ: The NC-90-G2 offers electronic pan, tilt, zoom with a 90° field of view and 5x digital zoom. It features a 20 MP image sensor that delivers exceptional optics.

Impactful collaboration delivered: Stay engaged with Active Speaker Framing, enabling AI-driven predictive camera positioning triggered by the onboard positioning microphones to locate and digitally frame the active talker. Additionally, full-body recognition ensure talkers stay in frame even if they turn from the camera. The NC-90-G2 also features Tile View, a multi-view composition of up to nine framed shots to foster a better collaboration experience for remote attendees, all from a single network camera.

Network simplicity, USB delivery: NC Series enlists a single network cable for video, power and control data transport into Q-SYS and then delivers the video to its intended UC compute device via USB. By leveraging the power of the network, Q-SYS allows you to add as to add as many NC Series cameras to your system as you desire, all while delivering a singular UVC/UAC stream to your application of choice.

Intrinsic Control & Automation: As native Q-SYS devices, NC Series leverage the full capabilities of the Q-SYS control engine, from drag-and-drop integration to scalable user control and automation. This allows you to design and deliver a user control and automation experience tailor-made for each unique space.

Integrated audio, video and control: NC Series cameras are driven by the Q-SYS Full Stack AV Platform, which unifies data, devices and a cloud-first open architecture to deliver a fully integrated audio, video and control solution that offers simpler integration and software-based scalability.

View spec sheet

Call for price

+44 (0) 1279 635 681

Key features

  1. Fixed-lens, electronic pan, tilt, zoom (ePTZ)
  2. 90° horizontal field of view and 5x digital zoom
  3. 20 MP image sensor for high-quality optics
  4. Active Speaker Framing: AI-driven dynamic camera positioning triggered by onboard positioning microphones to locate and digitally frame the active talker
  5. Full-body recognition ensures talkers stay in frame even when they turn from the camera
  6. Tile View: multi-view composition of up to nine framed shots from a single camera
  7. Power over Ethernet (PoE)
  8. Complete camera imaging controls, including white balance, focus and exposure
  9. User-configurable resolution and quality for IP streams (up to 1080p), providing greater flexibility for a wide variety of use cases
  10. Image rotation control to allow for inverted mounting
  11. Built-in mounting hardware
  12. Includes lens cover for privacy

Tech Specs

  1. Image sensor: 1/1.8" low-noise CMOS
  2. Lens: Fixed focus, f = 3.59 mm
  3. Zoom: 5x digital (3x lossless)
  4. Field of view: 90° horizontal
  5. ePTZ: Supported (electronic pan, tilt, zoom)
  6. Maximum subject distance (Active Speaker Framing): 7.9 m (26 ft)
  7. Scanning mode: Progressive
  8. Minimum illumination: 0.5 lux (F1.8, AGC on)
  9. Shutter speed: 1/30 s to 1/1000 s
  10. White balance: Auto, indoor, outdoor, one push, manual, colour temperature
  11. IP stream resolutions (preview): H.264 at 360p, 270p, 180p
  12. HDMI output: None
  13. SDI output: None
  14. Power: PoE Type 1, Class 3
  15. Dimensions: 252.2 × 56.5 × 104.5 mm
  16. Weight: 0.7 kg (with bracket)
