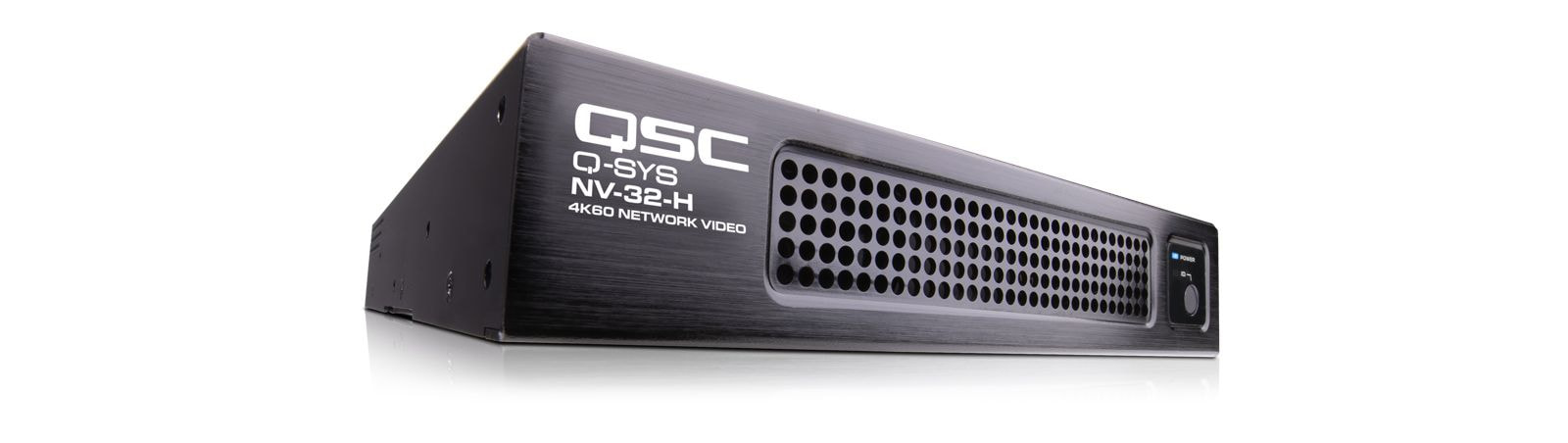

Network Video Endpoint for the Q-SYS Ecosystem


The NV-32-H (Core Capable) is a multipurpose, software-configurable video endpoint native to the Q-SYS Ecosystem, offering two distinct operating modes to choose between, based on the needs of the application. ‘Core Mode’ transforms the device into a fully integrated Q-SYS processor with local HDMI switching capabilities. ‘Peripheral Mode’ allows multi-stream video encoding or decoding for network-based HDMI video distribution. Like all Q-SYS devices, the NV-32-H (Core Capable) offers native integration and control, simplifying setup, configuration and firmware management while eliminating the need for advanced programming knowledge.

Call for price

+44 (0) 1279 635 681

Key features

  1. Core Mode
  2. Fully integrated Q-SYS Core processor
  3. Onboard 3 x 2 HDMI video switcher
  4. 32 x 32 network audio channels
  5. 8x AEC channels
  6. 1 x VoIP softphone instance

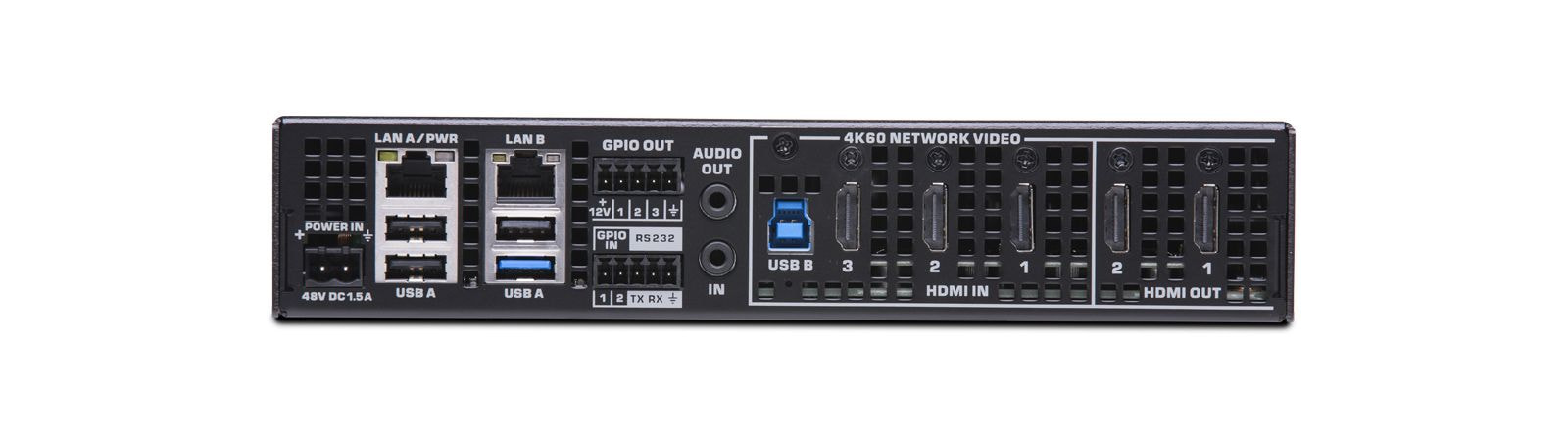

  7. audio I/O via HDMI, USB and 3.5mm
  8. Peripheral Mode
  9. Native HDMI video and audio distribution for the Q-SYS Ecosystem
  10. Q-SYS Shift™ adaptive video compression codec
  11. Software-configurable as an encoder or decoder
  12. Simultaneous streaming capabilities
