Tascam IF-ST2110
SMPTE ST2110 Expansion Card
Our Part No. 20566
Manufacturers Part No. IF-ST2110
Description

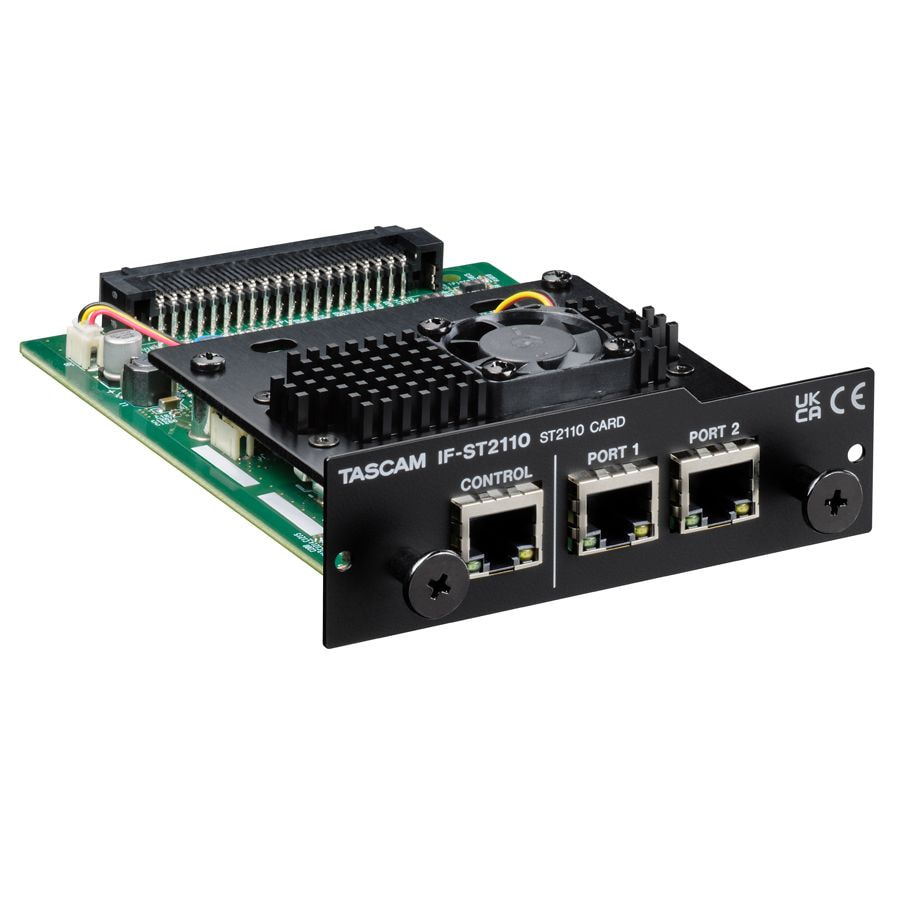

Supporting models : TASCAM Sonicview 24XP / TASCAM Sonicview 16XP The IF-ST2110 is an optional 64in/64out SMPTE ST 2110 compliant interface card for Sonicview 24XP and Sonicview 16XP.
List price *
£3,111.43
Key features
- Compliant with ST2110-30/31 and AES67 standards
- 64 In/64 Out (48kHz), 32 In/32 Out (96kHz) audio transmission
- Redundancy (ST2022-7 compliant)
- NMOS IS-04/05

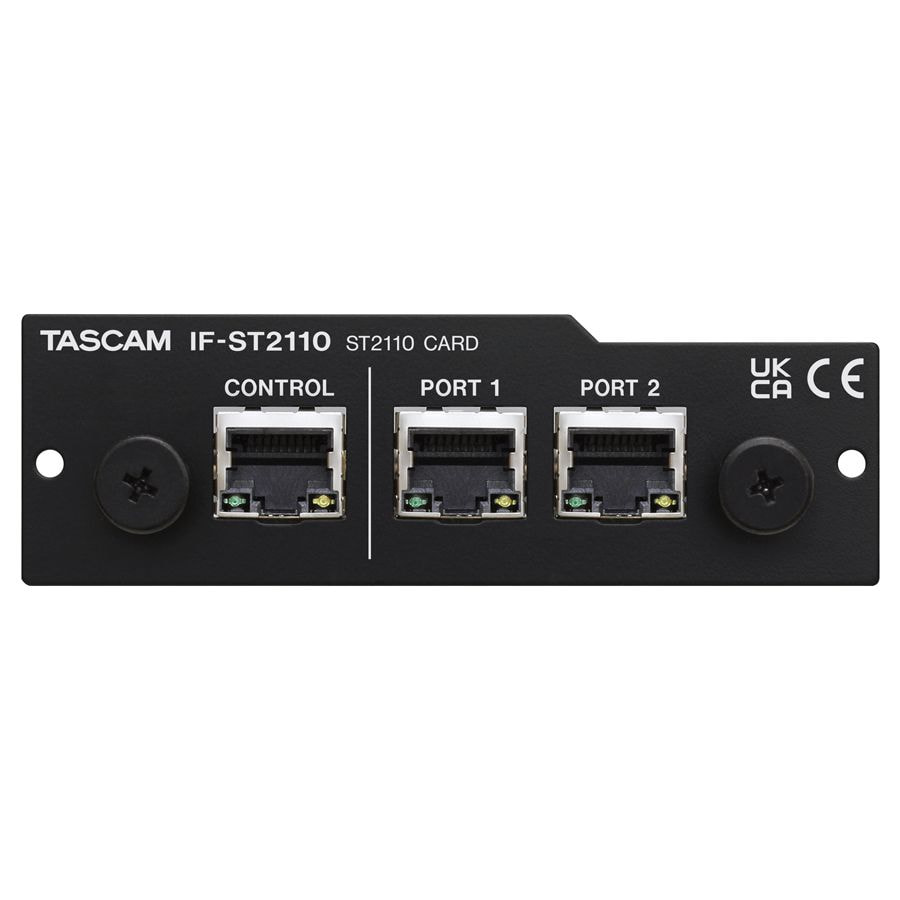

- Equipped with media stream and independent control ports - 2 media ports (PORT 1 and PORT 2) - 1 Control port (CONTROL)
- WebUI app included for control including point-to-point connection capability
Tech Specs
- External Dimensions: 107 × 34 × 156.8 mm (width × height × depth, including protrusions)
- Weight: 211g
