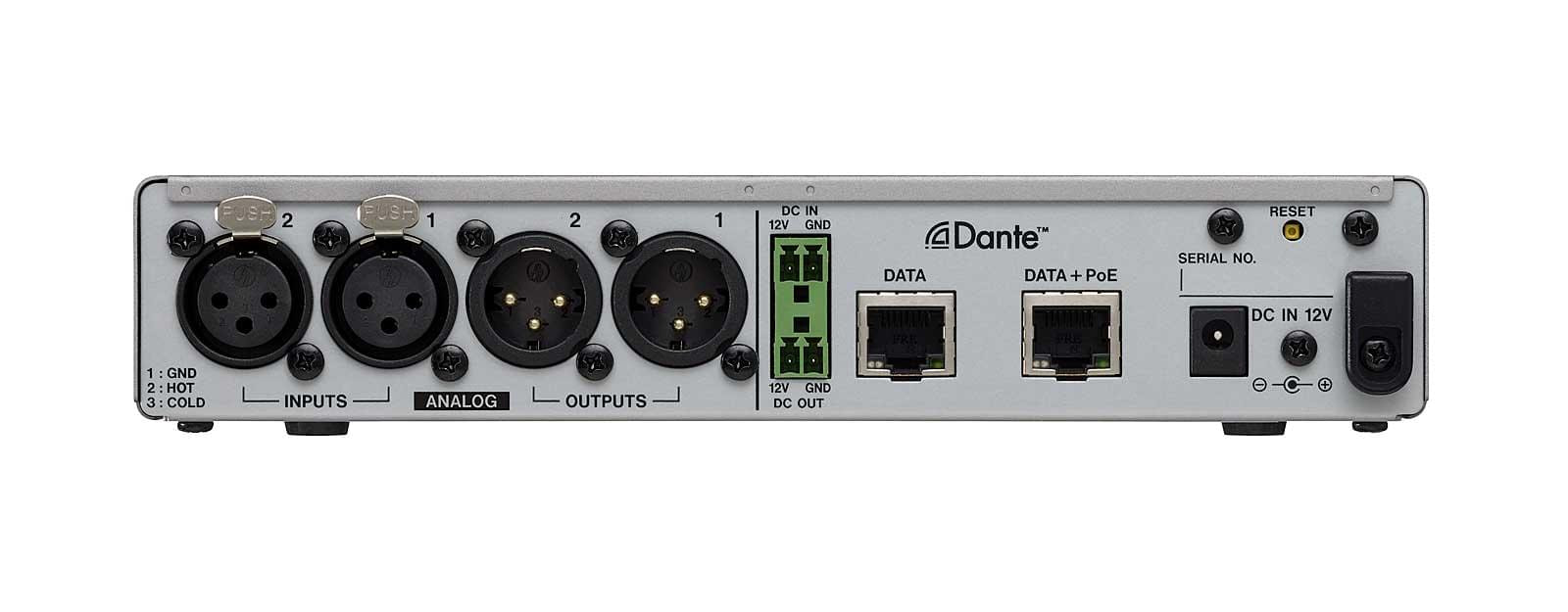

Tascam MM-2D-X

Two-Channel Analogue-Dante-Analogue Converter With DSP Mixer (XLR)

Description

The MM-2D is an exquisite analogue input/output unit that can either convert two mic/line input signals into two Dante output signals, or two Dante input signals into two line output signals. In addition, it also supports four-channel Dante input/output as well, making it possible to use virtually any audio sources within an established Dante network. Available with Euroblock (MM-2D-E) or XLR (MM-2D-X) connectors for analogue inputs and outputs, this model can be used for a wide range of applications. The MM-2D is part of the Tascam Dante Compact Processor Series consisting of compact, half-rack size audio converters for Dante/AES67 networks. The models easily add additional mic/line or AES/EBU inputs/outputs to Dante audio networks in public facilities, broadcasting stations, recording studios or upmarket domestic environment and can be freely combined. A key advantage of the product range is the DSP processor built into each unit. By providing not only mixing functions and EQ but also dynamic processing, automatic level control, auto-ducking, routing and noise compensation, even small systems can fully perform without additional signal processing or mixing devices. From the input of microphone signals to the output of powered speakers or recording devices, the Dante Compact Processor Series can build up a complete small system on their own. Remote control is possible via two different software applications available for Mac, Windows, iOS and Android devices: Tascam DCP Connect for configuration and Tascam EZ Connect for end users, both of which are simple to use and included with the units. The MM-2D also offers the possibility to mute its inputs and control its output levels via GPI. All models can be powered by PoE or an optional AC adapter. By using power daisy-chaining, two units mounted side-by-side in a rack can be powered by one AC adapter.

View spec sheet

List price *

£550.00

Key features

  1. Two balanced mic/line inputs with 48 V phantom power
  2. Two balanced line outputs
  3. Equipped with XLR connectors for touring and other more flexible applications
  4. Dante interface allows audio signals to be transferred over an Ethernet network: Two LAN connectors for Dante daisy-chaining; Flexible routing with ”Dante Controller” software
  5. AES67 is supported to allow connection with Ravenna and other compatible audio network technologies
  6. Up to 96 kHz sampling rate and 24 bit resolution
  7. Front-panel indicators for operation status and current sample rate
  8. Overload indicators for analogue input signals
  9. Signal indicators for analogue input and output signals
  10. Power supply by PoE (Power over Ethernet) or optional PS-P1220E AC adapter
  11. Power daisy-chaining allows two units to be supplied from one AC adapter
  12. Half-rack size chassis (1U)
  13. Attachment brackets included for mounting the unit under a table top, for example
  14. Four Dante audio input and output channels
  15. Powerful DSP mixer
  16. Input features: phantom power on/off, sensitivity (gain), trim, phase, 4-band equalizer, compressor with automatic level control, fader, mute
  17. Mixer features: Matrix mixer, ducking, ambient noise compensator (ANC), routing
  18. Output features: 10-band equalizer, delay, fader, mute, limiter, phase
  19. Up to six input sources (two mic/line input signals and four Dante inputs) can be mixed
  20. Matrix allows two mic/line inputs, four Dante inputs and the mixer output to be routed to two line outputs and/or four Dante outputs
  21. Up to 50 scene presets can be saved
  22. Timer event function allows presets to be switched at specific times (planned for a future update)
  23. Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments
  24. Two types of control software available (compatible with Windows/Mac/iOS/Android devices): Tascam MX Connect for system integrators, and Tascam EZ Connect for end-users
